Solar Products

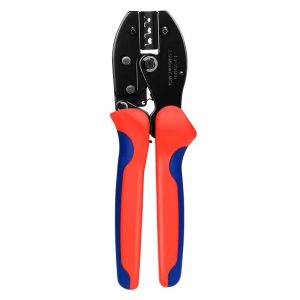

YTH-2546B MC4 Solar Crimping Tools Crimper for 2.5-6.0mm2 Solar Panel PV Connectors Cable
Key Features
- Precision Locator: Features a precision locator to accurately position terminals for crimping.
- Crimp Range: Supports crimping for 2.5mm², 4mm², and 6mm² cables, making it versatile for various solar applications.
- Minimal Hand Effort: Delivers up to 1.2 metric tons of pressure with minimal effort, ensuring efficient crimping.
- High-Quality Material: Made from durable carbon steel for long-lasting performance and strength.
- European-Style Handle: Straight handle design for comfortable grip and better control during use.
- Application: Perfect for crimping MC4 connectors used in solar panel systems.
Specifications
- Model Number: 2546B
- Crimp Range: 2.5mm², 4mm², 6mm²
- Length: 270mm
- Material: Carbon Steel
- Pressure: 1.2 metric tons
Solarmac Voltage Proctector Multi-Function Amp/Volt/Kw
Key Features :
- Under Voltage Protection: Adjustable range of 140V-210V (default: 170V); can be disabled for flexibility.
- Over Voltage Protection: Adjustable range of 230V-300V (default: 270V); can be disabled.
- Over Current Protection: Adjustable from 1A to 63A (default: 40A) to match your requirements.
- Reconnect Time: Delay-on-time adjustable between 1-500 seconds (default: 30s) for added safety.
- Built-in Monitoring Tools: Includes a voltage meter, ammeter, and energy meter for real-time data.
- Colorful Display: Vibrant and clear interface for easy operation and visibility.
- Energy Reset Option: Ability to reset kWh values for fresh usage tracking.
BREAKER BOX METAL/BASE PVC WATER PROOF ELECKTOR
UNI-T SOLAR MPPT METER UT673 PV
Certifications (UT673PV series only): CE, cETLus, RoHS
● Maximum power test (Pmax) 5～800W
● Peak power voltage (Vmp) 12～60V
● Peak power current (Imp) 0～35A
● Open circuit voltage (Voc) 12～60V
● Short circuit current (Isc) 0～35A
● Large screen and multiple result display
● No batteries needed, powered by the solar panel
● Equipped with MC4 test lead
● Portable and convenient
MC4 SOLAR CONNECTOR 1500 VOLT DC
Technical Data of MC4 DC Connector 1500V 50A
| Rated Current | 50A |
| Rated Voltage | 1500V DC |
| Test Voltage | 6KV(50Hz,1Min) |
| Contact Material | Copper, Tin plated |
| Insulation Material | PPO |
| Contact Resistance | <1mΩ |
| Waterproof Protection | IP68 |
| Ambient Temperature | -40℃~100℃ |
| Flame Class | UL94-V0 |
| Suitable Cable | 2.5/4/6mm2 (14/12/10AWG) cable |
| Certificate | TUV,CE,ROHS,ISO |
